128X64 FSTN Graphic LCD Module With White Backlight HTM12864-19C

Brand Name : HOTHMI

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : COG LCD Module with Panel

Display content : 128x64 dot

Product Application : Smart Meter

Viewing Angle : 6H

Number of PINS : 11PIN

Special Instructions : Built-in Chinese character library

Contact Now

128X64 Graphic LCD Module | FSTN | Display With White Backlight | HTM12864-19C

Product parameters


Backlight Brightness - RGB/White
Interface method - SPI
Working temperature - -20~70℃
Supply voltage - 3.3V
Driver IC Model - ST7565R

Interface Pin Function

Pin No. Pin Name Function
1 CS1 Chip select signal.
2 RES Rester Pin(L->H)
3 A0

A0 = “H”: Indicates that SDI is display data.

A0 = “L”: Indicates that SDI is control data.
4 SCK Serial clock input (SCL).
5 SDI Serial data input (SI);
6 VSS Negative power supply,0V
7 VDD Positive power supply,3.3V
8 BLA Positive power supply for Backlight (3.3V)
9 BR Backlight R_LED Control Pin (VSS Active)
10 BG Backlight G_LED Control Pin (VSS Active)
11 BB Backlight B_LED Control Pin (VSS Active)

Mechanical Data

Item Standard Value Unit
Module Dimension 45.0x42.0x9.0 mm
Viewing Area 36.0x23.5 mm
Mounting Hole 33.26x20.46 mm
Dot Pitch 0.32x0.26 mm
Dot Size 0.29x0.23 mm

Electrical Characteristics

Item Symbol Standard Value
typ.		 Unit
Input Voltage VDD 3.3 V

Absolute Maximum Ratings

Items Symbol MIN. MAX. Unit Condition
Supply Voltage VDD -0.3 +3.6 V VSS = 0V
Input Voltage VIN -0.3 VDD+0.3 V VSS = 0V
Operating Temperature TOP -20 +70 ℃ No Condensation
Storage Temperature Tst -30 +80 ℃ No Condensation

Electrical Characteristics

Items Symbol MIN. TYP. MAX. Unit Condition
Operating Voltage VDD 2.4 3.3 3.6 V -
Input High Voltage VIH 0.8 x VDD - VDD V /CS1,/RES,A0 SCK,SDI
Input Low Voltage VIL VSS - 0.2 x VDD V
Output High Voltage VOH 0.8 x VDD - VDD V -
Output Low Voltage VOL VSS - 0.2 x VDD V -
Input Leakage Current ILI -1.0 - 1.0 μA -
Output Leakage Current ILo -3.0 - 3.0 μA -
Operation Current IOP - 100 210 μA VOUT=6.0~13.5V
Standby Mode IDD - 5 10 μA

Ta = 25°C

Display OFF
Sleep Mode ISL - 0.1 4 μA

LED Backlight Circuit

Items Symbol MIN. TYP. MAX. Unit Condition
Forword Voltage Vf BLA - 3.1 - V Wtihout Resister
Forword Current If BLA - 30 40 mA A kind of color

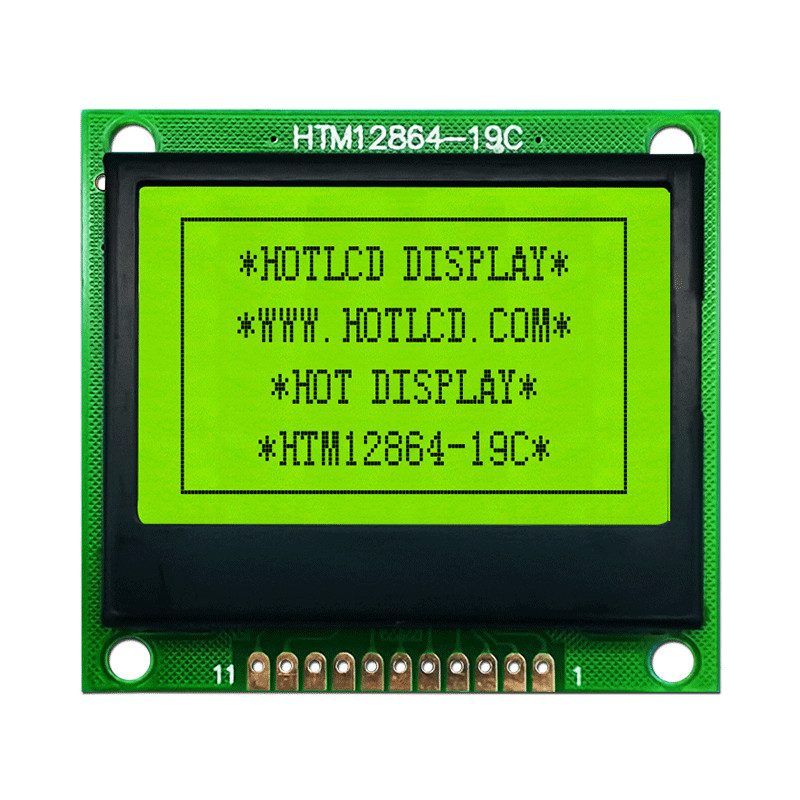

128X64 FSTN Graphic LCD Module With White Backlight HTM12864-19C128X64 FSTN Graphic LCD Module With White Backlight HTM12864-19C128X64 FSTN Graphic LCD Module With White Backlight HTM12864-19C

128X64 FSTN Graphic LCD Module With White Backlight HTM12864-19C

HTM12864-19C-31S-N3S-V02 Manual.pdf
