160X128 Graphic Blue LCD Display With White Backlight T6963C

Name: 160X128 Graphic Blue LCD Display With White Backlight T6963C
Brand: HOTHMI
Price: 1 USD

China 160X128 Graphic Blue LCD Display With White Backlight T6963C factory

Brand Name : HOTHMI

Model Number : HTM160128B

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : Standard COB Dot Matrix Module

Display content : 160X128

Product Application : Automatic Packaging Machine

Viewing Angle : 6H

Number of PINS : 22PIN

Special Instructions : MCU/8bit

Driver chip model : T6963C

Contact Now

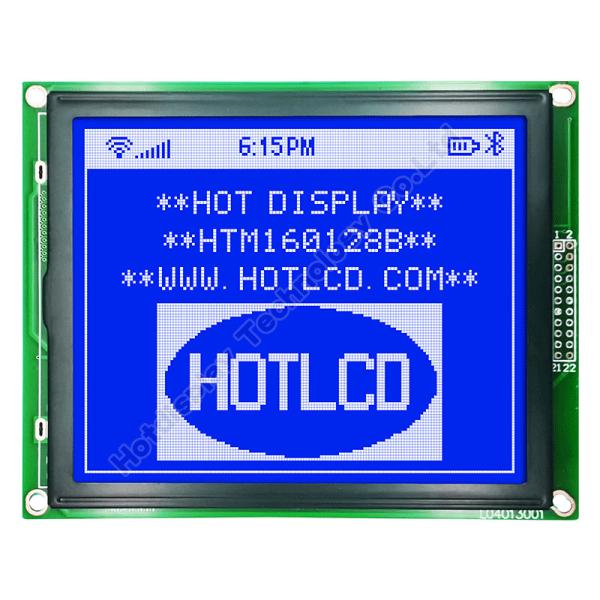

160X128 Graphic LCD Module | STN - Blue Display With White Backlight T6963C/HTM160128B

HTM160128B | Monochrome Graphic Module | 160x128 Pixels | Transmissive LCD | White Backlight | STN (-) Negative Blue Display | Built-in Negative Voltage | Selectable Font Size

HOTLCD 160x128 graphic Liquid Crystal Display module shows white pixels on a blue background. This transmissive LCD Display requires a backlight for visibility and offers a wide operating temperature range from -20 to 70 degrees Celsius. This HTM160128B display includes built-in negative voltage supply as well as selectable font size. It has an optimal view of 6:00, operates at 5V supply voltage and is RoHS compliant.

Product parameters

ITEM	STANDARD VALUE	UNIT
Number of dots	160*128 DOTS	----
Module dimension	129.0(W)102.0(H)12.1(T)MAX	mm
View display area	101.0(W) x 82.0(H)	mm
Dot size	0.54(W) x 0.54(H)	mm
Dot pitch	0.58(W) x 0.58(H)	mm
Operating temp	-20~70	℃
Storage temp	-30~80	℃
Driving Method	1/ 128 DUTY,1/ 12 BIAS,VOP= 15.0V
Viewing direction	6 O’CLOCK
Display mode	STN/ (BLUE)
Display type	TRANSMISSIVE / NEGATIVE
Driver IC	T6963C or EQUIV
Backlight	WHITE

Mechanical Data

Item	Standard Value	Unit
Module Dimension	129.0x102.0x8.6	mm
Viewing Area	101.0x82.0	mm
Mounting Hole	92.76x74.2	mm
Dot Pitch	0.58x0.58	mm
Dot Size	0.54x0.54	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V

Interface Pin Function

Pin No.	Pin Name	Function
1	FG	Frame ground
2	VSS	Ground for logic
3	VDD	Power supply for logic
4	V0	Power supply for LCD driver (Vop=VDD-V0)
5	VEE	Negative voltage output
6	/WR	Write signal
7	/RD	Read signal
8	/CE	Chip enable
9	C/D	Command or data selection
10	HALT	Power-saving ( H : Normal ; L : stop clock operating)
11	/RES	Reset signal ( Low effective)
12~19	DB0~DB7	Read/write signal ( H :read ; L : write)
20	FS1	Pins for selection of font
21	BLK	Power supply for backlight+
22	BLA	Power supply for backlight -

Absolute Maximum Ratings

Items	Symbol	MIN.	MAX.	Unit	Condition
Supply Voltage	VDD	-0.3	+7.0	V	VSS = 0V
Supply Voltage	Vlcd	-0.3	+20.0	V	VSS = 0V
Input Voltage	VIN	-0.3	VDD+0.3	V	VSS = 0V
LED forward current	If	0	100	mA	---
Operating Temperature	TOP	-20	+70	℃	---
Storage Temperature	Tst	-30	+80	℃	---

DC Characteristics

Items	Symbol	MIN.	TYP.	MAX.	Unit
Operating Voltage	VDD	4.5	5.0	5.5	V
Input High Voltage	VIH	VDD-2.2	-	VDD	V
Input Low Voltage	VIL	0	-	0.8	V
Output High Voltage	VOH	VDD-0.3	-	VDD	V
Output Low Voltage	VOL	0	-	0.3	V
Supply Current (BACKLIGHT)	IDD	---	105	140	mA

Search Keyword: 160x128 lcd, 160 x 128 lcd, lcd 160 x 128

160X128 Graphic Blue LCD Display With White Backlight T6963C

HTM160128B-SPEC.pdf
