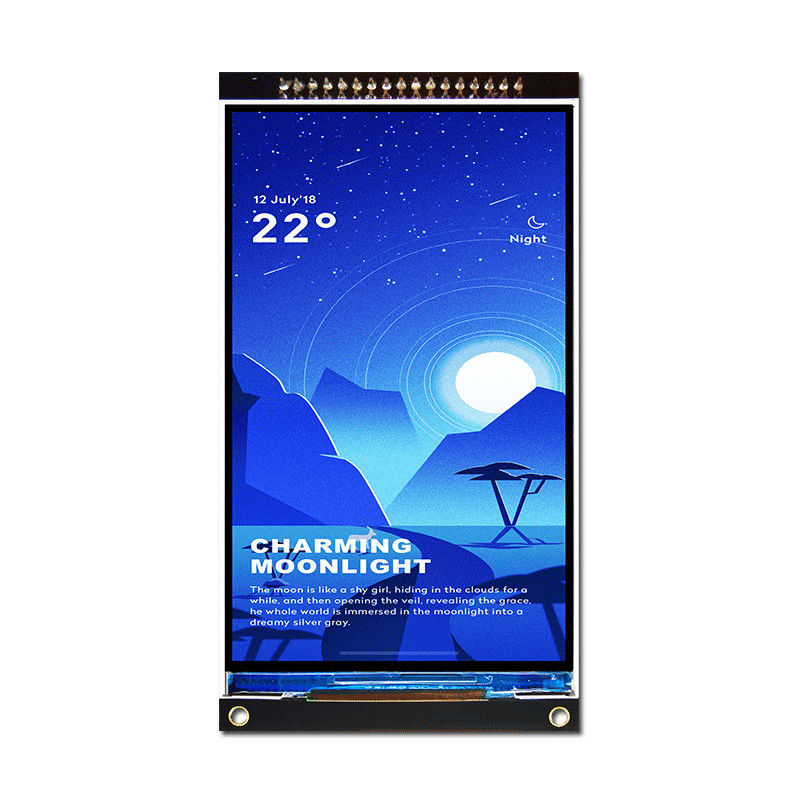

Sunlight Readable TFT LCD Module 4.3 Inch 480x800 NT35510

Brand Name : HOTHMI

Model Number : TFT-H043A4WVIST5N60

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : TFT Module

Display Size : 4.3 inches

Display content : 480x800 dots

Interface : MCU / RGB / MIPI / MDDI

Working temperature : -20~70℃

Driver chip model : NT35510

Contact Now

4.3 Inch 480x800 Sunlight Readable TFT Display Module NT35510/TFT_H043A4WVIST5N60

Product parameters


Dimensions (mm) - 60.86x104.50x 2.50
Effective size mm - 56.16x93.60
Product Application - Handheld Instruments
Angle - Full Angle
Backlight type or brightness - 500cd/m2
Connection method PIN number - FPC-60PIN
Supply voltage - 3.3v

General Feature

Item Standard Value Unit
Display Size 4.3” --
Number of Pixels 480(H)x3(RGB)*800(V) --
Active Area 56.16(H) *93.60(V) mm
LCM Outline Dimension 60.86(H) ×102.57× 2.70(V) mm
Viewing Direction Full O’Clock -
LCM Interface With CPU / RGB / MIPI / MDDI Interface -
LCM Driver IC NT35510 -
LCM Driver Voltage IOVCC=1.8V,VCI=3.3V (Typ) V
Backlight White LED -
Touch Panel Without Touch Panel -
CTP Driver IC - - - -
CTP Driver Voltage - - - V
CTP I/O Digital Voltage - - - V
Operation Temperature -20~70 ℃
Storage Temperature -30~80 ℃

Pin Description

Pin NO. Symbol Description
1,2 GND Ground

3

D0N

♦These pins are DSI-D0+/- differential data signals if MIPI interface is used.

♦These pins are MDDI_DATA0_P/M differential strobe signals if MDDI interface is used.

♦If not used, please fix this pin at GND.

5

D0P
5,6 GND Ground

7

DCLKN

♦These pins are DSI-CLK+/- differential clock signals if MIPI interface is used.

♦These pins are MDDI_STB_P/M differential strobe signals if MDDI interface is used.

♦If not used, please fix this pin at GND.

8

DCLKP
9 GND Ground

10

D1N

♦These pins are DSI-D1+/- differential data signals if MIPI interface is used.

♦These pins are MDDI_DATA1_P/M differential strobe signals if MDDI interface is used.

♦If not used, please fix this pin at GND.

11

D1P
12 GND Ground
13 VCI Analog Power
14 IOVCC Power supply for interface system
15 VSD

♦ Vertical synchronizing input signal for RGB interface.

♦ If not used, please fix this pin at GND.
16 HSD

♦ Horizontal synchronizing input signal for RGB interface.

♦ If not used, please fix this pin at GND.
17 PCLK

♦ Pixel clock signal for RGB interface.

♦ If not used, please fix this pin at GND.
18 DEN

♦ Data enable signal for RGB interface.

♦ If not used, please fix this pin at GND.

19-42

DB0-DB23

♦ Data Bus.

♦ If not used, please fix this pin at GND.
43 RESET LCM Reset Pin.

44

CSX

♦ Chip select input pin (“Low” enable) in 80-series MPU I/F and SPI I/F.

♦ This pin is not used for MIPI or MDDI I/F, please fix this pin at GND.
45 RDX

♦ Read enable in 8080 MCU parallel IF. Low-active.

♦If not used, please fix this pin at GND.

46

WRX

♦ Write enable in MCU parallel interface

♦ In SPI mode, this pin is used as SCL.

♦ In I2C mode, Serial input clock in I2C I/F

♦ If not used, please fix this pin at GND.
47 DCX

♦ Display data/command selection pin in parallel IF.

♦ If not used, please fix this pin at GND.

48

SPI_SDI

♦ In SPI mode,SPI interface input/output pin.

♦ In I2C mode, Serial input/output signal in I2C I/F.

♦ If not used, please fix this pin at GND.
49 SPI_SDO

♦ In SPI mode,SPI interface output pin.

♦ If not used, please let this pin open.

50

TE

♦ Tearing effect signal is used to synchronize MCU to frame memory writing.

♦ If not used, please let this pin open.
51-54 IM0-IM3 The MCU interface mode select

55

PSWAP

♦ Input pin to select HSSI_D0/D1 data lane sequence and polarity in high speed interface only.

♦ For MIPI interface, both DSWAP and PSWAP function are available.

♦ For MDDI interface, only PSWAP function is available. i.e. DSWAP=1 in below table is invalid.

♦ If not used, please fix this pin at GND.

56

DSWAP

57

LANSEL

♦ Input pin to select 1 data lane or 2 data lanes in MIPI/MDDI interface.

♦ If not used, please fix this pin at GND.
58 MTP No Conect
59 LED_A LED Anode
60 LED_K LED Cathode
