Graphic 128X64 COG LCD Module ST7565R Positive Gray Reflective

Name: Graphic 128X64 COG LCD Module ST7565R Positive Gray Reflective
Brand: HOTHMI
Price: 1 USD

China Graphic 128X64 COG LCD Module ST7565R Positive Gray Reflective factory

Brand Name : HOTHMI

Model Number : HTG12864R

Place of Origin : Dongguan, China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product type : Graphic COG LCD

Show contents : 128x64

Outline size(mm) : 49.0x35.5x2.8mm

Size of View Window(mm) : 45.2x26.9mm

Display size(mm) : 40.92x24.38mm

Point spacing(mm) : 0.36x0.30mm

Visual angle : 6H

Connection PIN Number : 28 (PIN)

Working temperature℃ : -20~70

Power supply voltage : 3.3 (V)

Driver chip model : ST7565R

Contact Now

128X64 Graphic COG LCD ST7565R | FSTN Positive Reflective Gray Display/HTG12864R

HTG12864R-25W-28K06 | Monochrome Graphic COG | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display

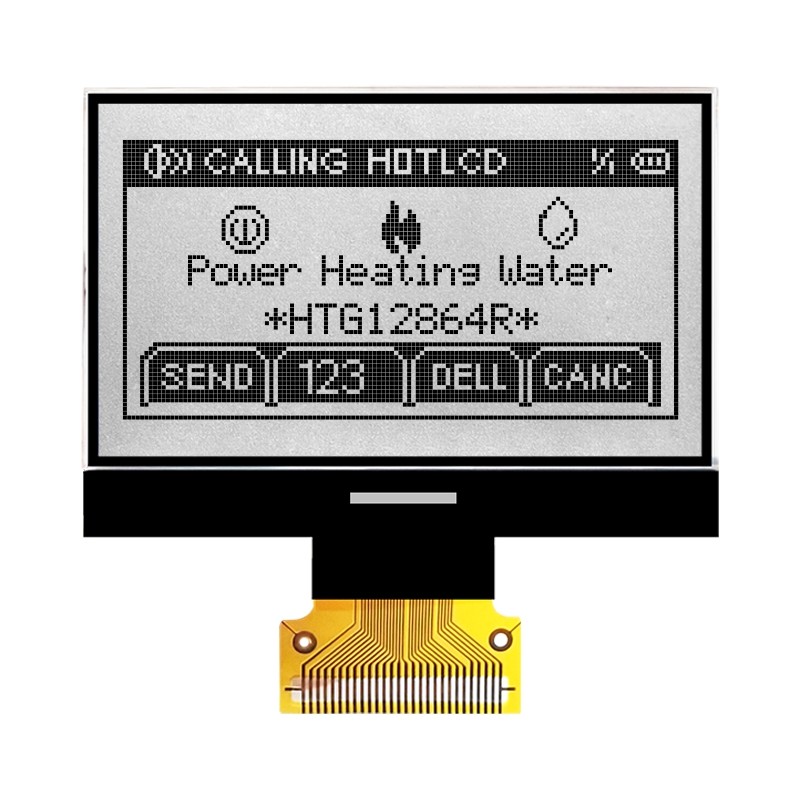

HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG12864R-25W-28K06 display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant. This display comes with a built-in ST7565R-G controller.

Product parameters

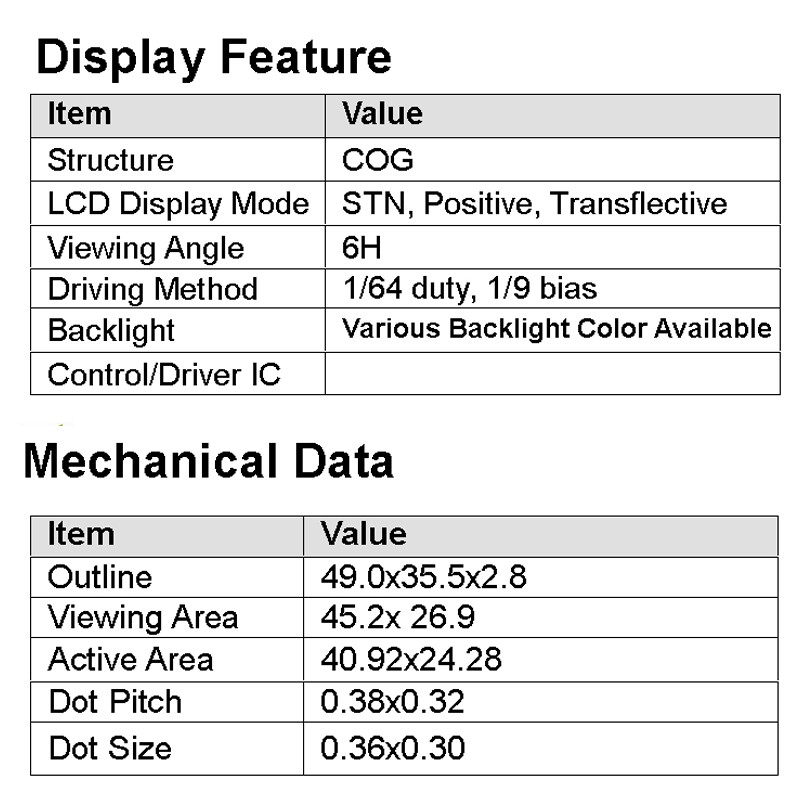

ITEM	STANDARD VALUE	UNIT
Number of dots	128x64	dots
Module dimension	49.0x35.5x2.8	mm
View display area	45.2x26.9	mm
Dot size	0.36x0.30	mm
Dot pitch	0.38x0.32	mm
Operating temp	-20~70	℃
Storage temp	-30~80	℃
Driving Method	1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
Viewing direction	6H
Display mode	STN
Display type	TRANSMISSIVE / NEGATIVE
Driver IC	ST7565R
Backlight	WHITE
Product application	industrial control, instrumentation

Terminal Function

1	CS1
2	RES
3	A0
4	WR
5 6	RD D0
7	D1
8	D2
9 10	D3 D4
11	D5
12	D6(SCL)
13	D7(SI)
14	VSS
15 16	VOUT CAP3P
17	CAP1N
18	CAP1P
19	CAP2P
20 21	CAP2N V4
22	V3
23	V2
24 25	V1 V0
26	C86
27	P/S
28	VDD

Absolute Maximum Ratings

Items	Symbol	MIN.	MAX.	Unit	Condition
Supply Voltage	VDD	-0.3	+3.6	V	VSS = 0V
Input Voltage	VIN	-0.3	VDD+0.3	V	VSS = 0V
Operating Temperature	TOP	-20	+70	℃	No Condensation
Storage Temperature	Tst	-30	+80	℃	No Condensation

Electrical Characteristics

Items	Symbol	MIN.	TYP.	MAX.	Unit	Condition
Operating Voltage	VDD	3.0	3.3	3.6	V	VDD
Input High Voltage	VIH	0.8 x VDD	-	VDD	V	/CS1,/RES,A0,SCK, SDA
Input Low Voltage	VIL	VSS	-	0.2 x VDD	V	/CS1,/RES,A0,SCK, SDA
Output High Voltage	VOH	0.8 x VDD	-	VDD	V
Output Low Voltage	VOL	VSS	-	0.2 x VDD	V
Input Leakage Current	ILI	-1.0	-	1.0	μA	VDD
Output Leakage Current	ILo	-3.0	-	3.0	μA	VDD

LED Backlight Circuit

Items	Symbol	MIN.	TYP.	MAX.	Unit	Condition
Forword Voltage	Vf BLA	-	3.1	-	V	VDD
Forword Current	If BLA	-	30	40	mA	VDD

All Products

Bezel Appearance	Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB Appearance	PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
Soldering	Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
Consistency	Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product Integrity	Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass Color	While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
